Series 140 for Closet Application
The Series 140 accordion door...
Your safety is our priority. Trust GlassEssential
Your safety is our priority. Trust GlassEssential

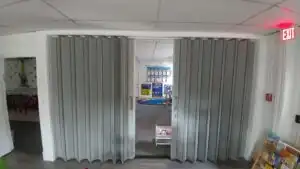

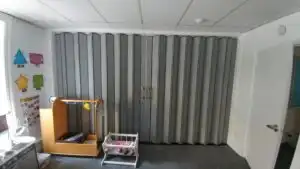

Discover The Series 4188 Acoustic Partition, A Groundbreaking Solution In Soundproofing Technology. Featuring An 8-inch Panel Size, This Partition Not Only Offers Superior Acoustic Performance With Its FSTC Rating Of 41 But Also Integrates A Robust Dual-wall Construction For Effective Sound Reduction.
The Panels, Crafted From High-quality Medium Density Fiberboard, Are Complemented By A Routed Edge Design For Seamless Vinyl Hinging. The Panel Connectors, Made Of Flexible Vinyl And Color-coordinated To Match The Panel Selection, Are Both Aesthetically Pleasing And Functional.
For Smooth Operation, The Hinge Assembly Is Constructed From 16 Gauge Steel With A Pantograph Action, Specifically Engineered For Dual-wall Door Assemblies. The Track System, Made From Durable 2-inch By 1-1/4-inch Aluminum And Pre-punched For Screw Fasteners, Ensures Stable And Secure Mounting.
The Soundproofing Efficiency Of The Series 4188 Is Further Enhanced By Its Dual-wall Door Design, Featuring Internal Acoustic Material And Flexible Vinyl Sweep Strips On Both The Top And Bottom. The Wood Molding Mounted On Both Sides Of The Track Forms A Comprehensive Sweep Surface, Effectively Blocking Noise.
Inside The Walls Of The Partition, An Acoustical Liner Is Applied, Significantly Boosting Its Sound-insulating Properties. The Movement Is Facilitated By Nylon-tired Steel Ball Bearing Wheels, With 4-wheeled Carriers At Each Volute And Lead Post, Ensuring Smooth And Effortless Operation.
Additional Features Include A Robust Extruded Aluminum Lead Post With Jamb Molding, A Secure Metal Handle, And A Versatile Deadlatch With Thumb Turn And Keylock Options, Providing Both Convenience And Security.
Customization Is Available With Options For Width And Height, Accommodating Laminates Up To 10 Feet 1 Inch. The Stack Space And Width Are Efficiently Designed, With The 4188 Series Offering A Stack Width Of 18 1/2 Inches And A Stack Space Of 1 5/8 Inches Per Foot Plus 9 Inches For The Lead.
Tested And Certified By An Acoustic Engineer In Eugene, Oregon, Following ASTM E 336-96 Procedures, The Series 4188 Ensures Reliability And Performance, Making It An Ideal Choice For Spaces Requiring Advanced Sound Control.
