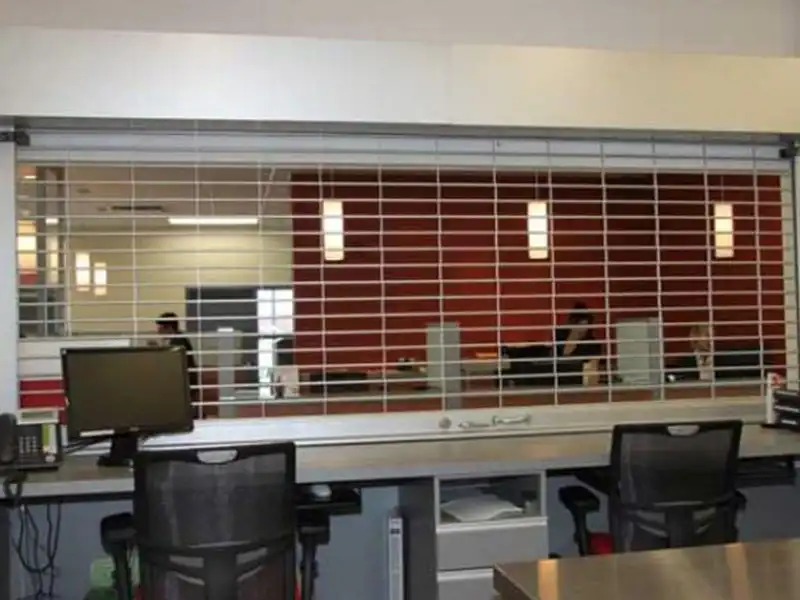

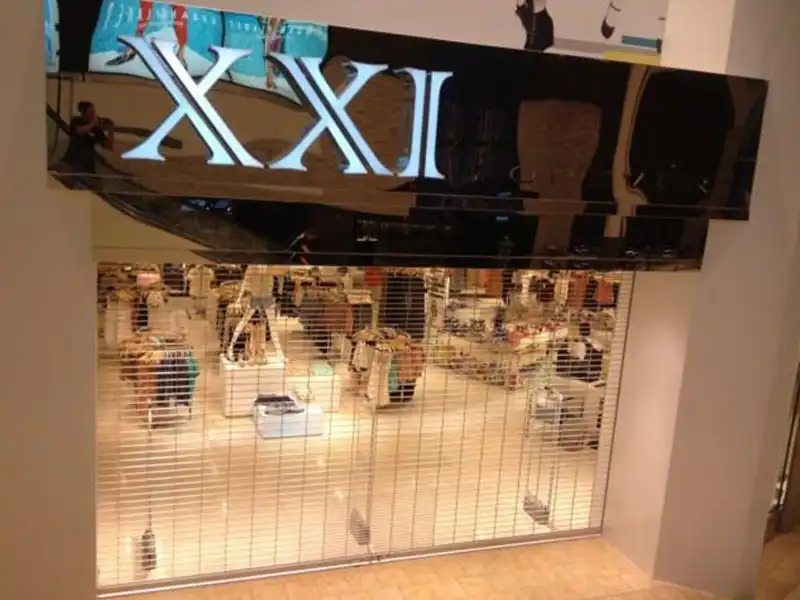

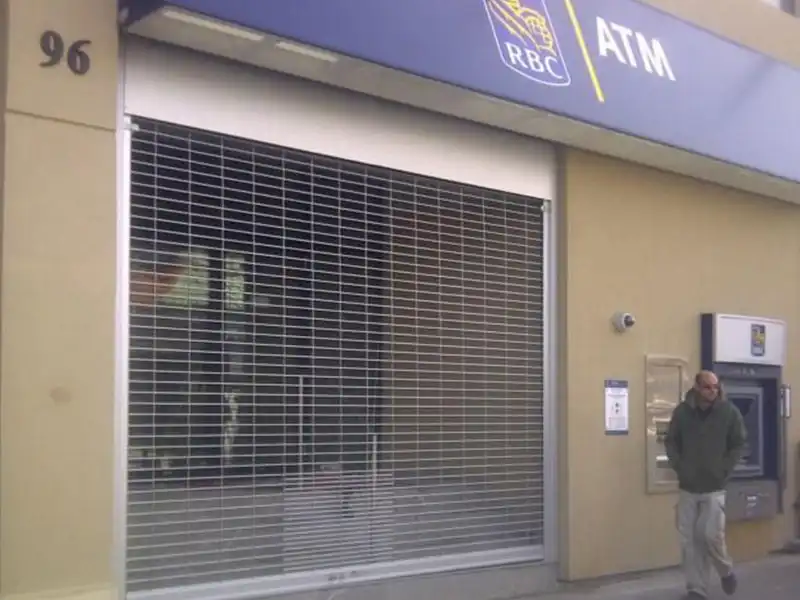

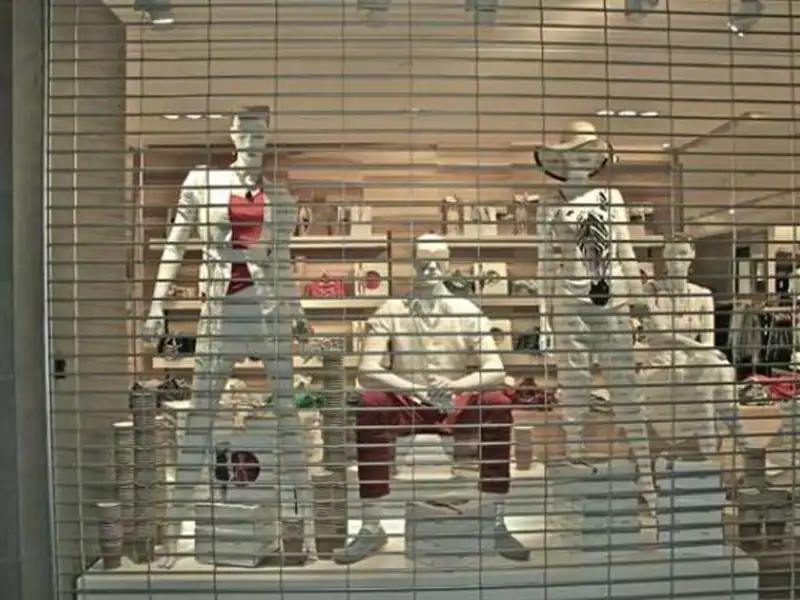

Roll 126 : An Open Style Security Rollup Grille Door
Roll 126 Features

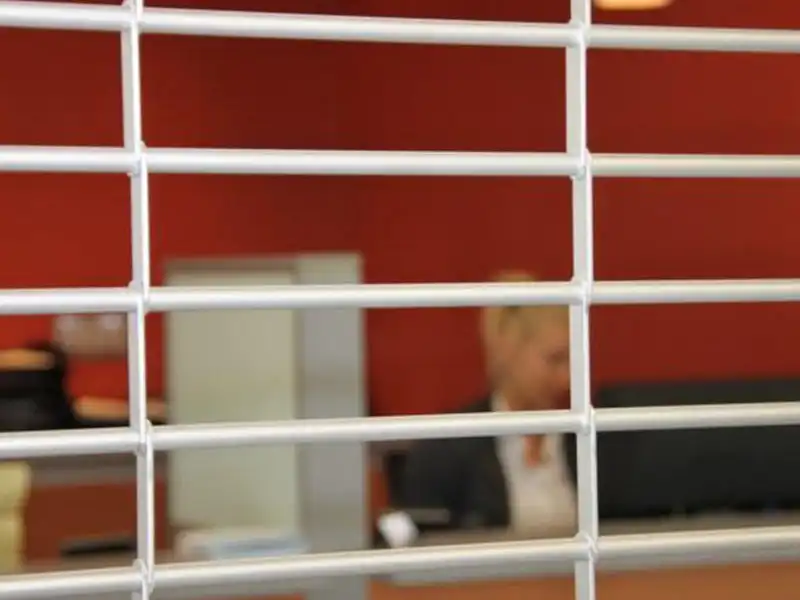

Roll-126 Is Open Style Rod And Links Model Rolling Grille.
Made Of Sturdy Aluminum Extrusions And Continuous Metal Rods Assembled In A Open Style Pattern.
Protects Against Theft And Vandalism.
Provide Protection Against Break-ins Without Restricting Air Flow Or Visibility.
Allowing Full View Of What’s Inside.
Unique Alternative To Traditional Rolling And Counter Grilles.
It’s The Logical Choice For Storefronts, Display Windows, Airports, Stadiums, And More.
Excellent Solution For Locations Requiring Security And Visual Appeal, Like High-end Stores.

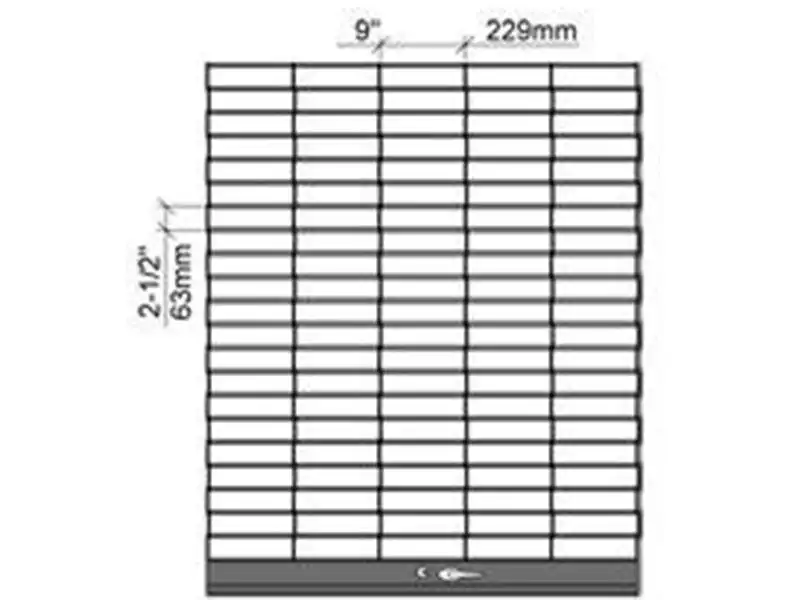

Roll-126 (open Style, Rods & Links) Model Constructed Of 2 1⁄2” (64mm) High On Center Horizontal Sections Of Full Width, Concealed 5/16” (8mm) Diameter Rods Spaced At 9” (230mm) Intervals By 5/8” (16mm) X 3 1/8” (79mm) Vertical Links. All Horizontal Rods Are Covered By 7/16" (11mm) Diameter Aluminum Horizontal Spacer Tubes Leaving 2 1⁄4" (57mm) Spacing Between Tubes.
Material: Standard Aluminum 6063-T5 Shall Be Clear Anodized Finish.
End Plates: 3/16 " Thick End Plates To Support The Ends Of The Barrel Assembly With Sealed, Self-aligning Shaft Bearings. End Plates Bolted To Support Tubes.
Guides: Vertical Curtain Guides Are To Be Of Extruded Aluminum 1 3⁄4” (4.4mm) Wide X 2 1⁄2” (6.4mm) Deep With Nylon Brush Seal To Allow Smooth Operation.
Good-looking Roll-up Door For High-end Storefronts And Any Location With A Contemporary Architectural Vibe.
Operation : Manually Operated Or Electrically Operated Or Hand Chain Hoist Or Hand Crank With Removable Crank
Closures Over 16 Feet (4.8 M) Wide Should Be Electrically Operated.
Industrial Duty, Jackshaft Hoist Type Motor Use For Rolling Grille.
Manual Push Up And Down Effort To Raise Or Lower The Grille Shall Not Exceed 15 Pounds (7kg) Force.
Vertical Curtain Guides Are Of Extruded Aluminum 1 3⁄4” (4.4mm) Wide X 2 1⁄2” (6.4mm) Deep With Nylon Brush Seal To Allow Smooth Operation.
Mounting Options: Between The Jamb(recess Mount) Or Face Of Wall (Surface Mount)
Supports: 3” (76mm) X 3” (76mm) Structural Tubes With 0.120 (3mm) Wall Thickness. Tubes To Be Attached To The Floor Slab And Joists Above. Attachment At Top Is For Lateral Support Only. For Openings Over 250 Sqft (2.3m2 ,4” (101mm) X 4” (101mm) Structural Tubes May Require. For Face Of Wall Installation, Instead Of Steel Tubes, 2” (50mm) X 3” (76mm) Steel Angles May Be Used.
Options For Hood: 2, 3 Or 4 Sides (please Choose) 0.032” (0.8mm) Clear Anodized Hood To Cover Barrel And Rolling Grille.
Optional Emergency Egress Device To Disengage Motor In Case Of An Emergency.
Optional Electrical Key Switch - Flush Mounted For Motorized Operation
Heavy Duty Extruded Aluminum Bottom Bar Equipped With Two 1” (2.5mm), 5 Pin Mortise
